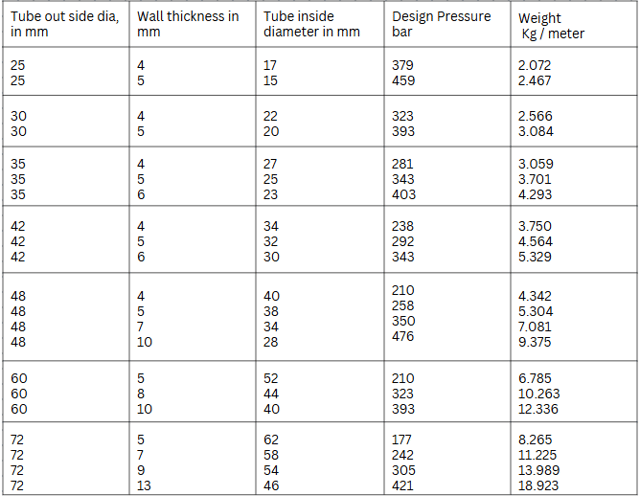

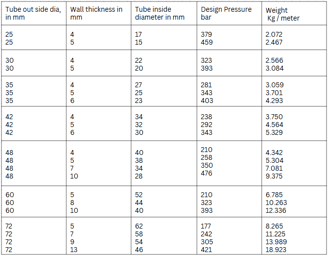

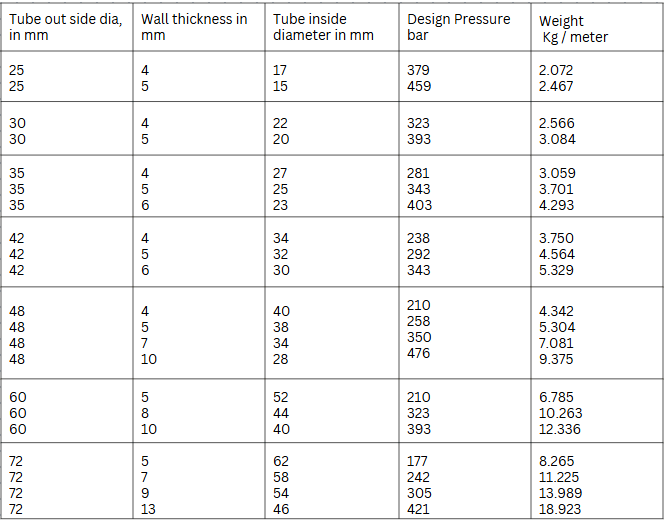

Hydraulic Tubes for Hydraulic Systems / Power packs

Hydraulic Seaamless Tubes are precision cold this drawn
Tubes are bright annealed in our Continuous Roller Hearth furnace.
Tubes are heat treated above upper critical temperature for bright, Scale free, soft and ductile condition
suitable for Hydraulic & other engineering applications
Tubes can be supplied in oiled condition, or in phosphated / passivated condition.

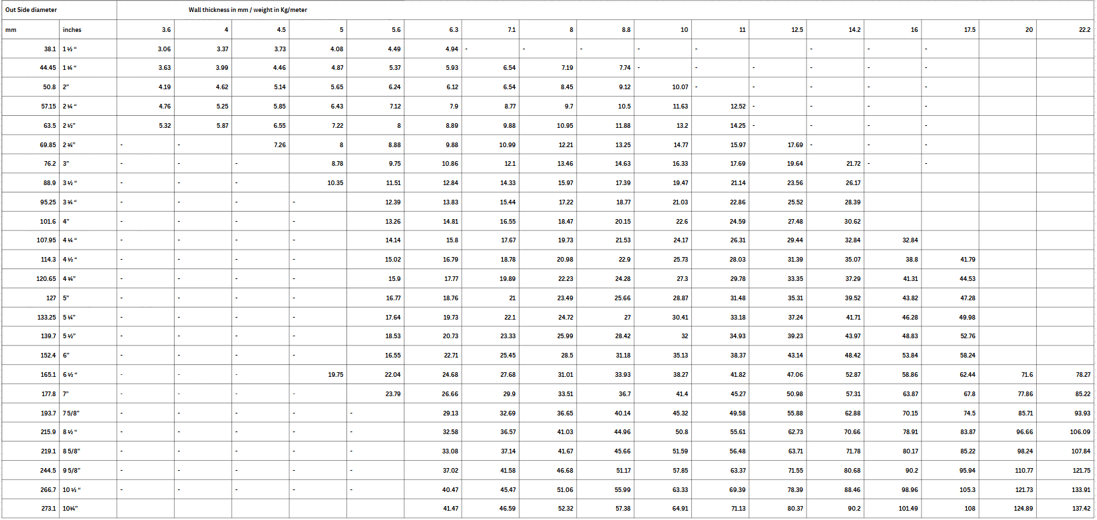

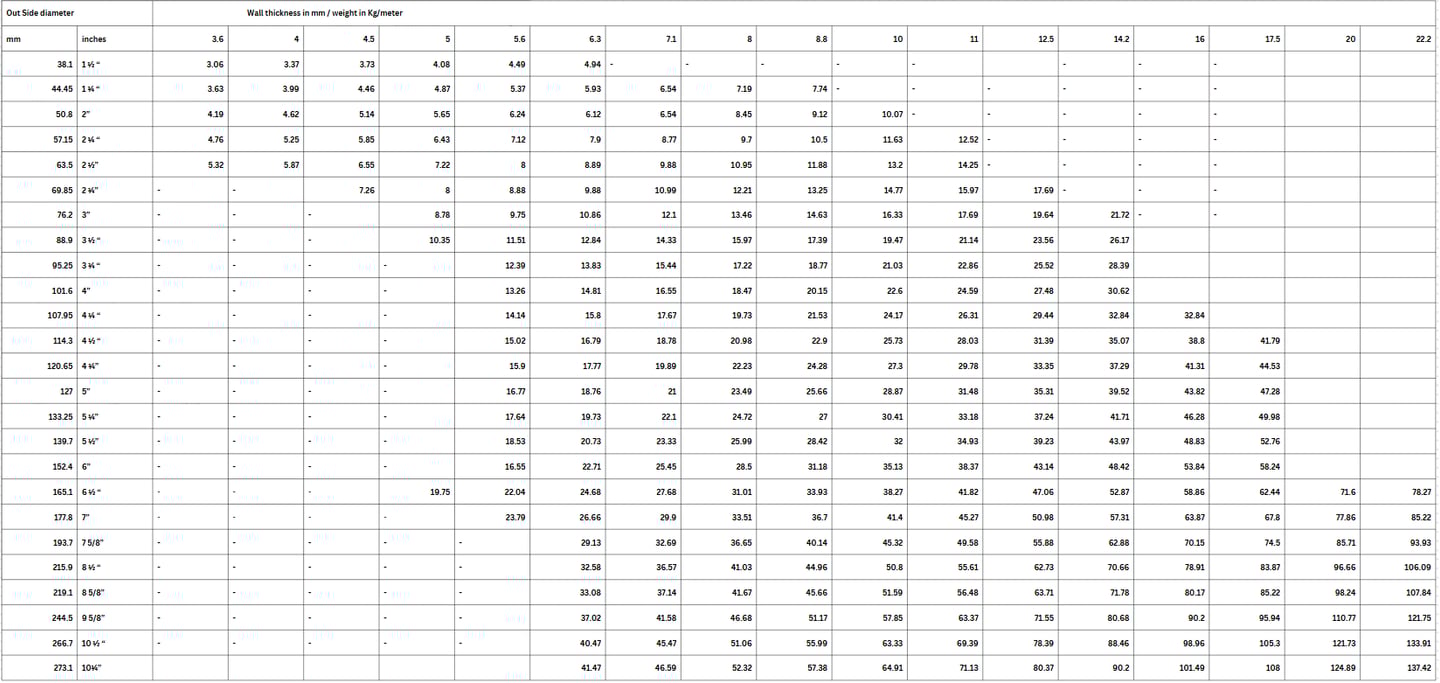

BEARINGS TUBES

Mill tubes are processed in the Cold Mill Division in the
pickling plant,
Draw Bench,
Spherodising Furnace,
Straightening Mill,
ECT &
Hydro Testing equipment to produce Bearing Tubes as per standards The sizes processed are for 40mm dia to 90 mm dia in various thicknesses as per specific requirements

Material Specification 37Mn/1, 37Mn/2, 37Mn/3, 34Cr Mo4

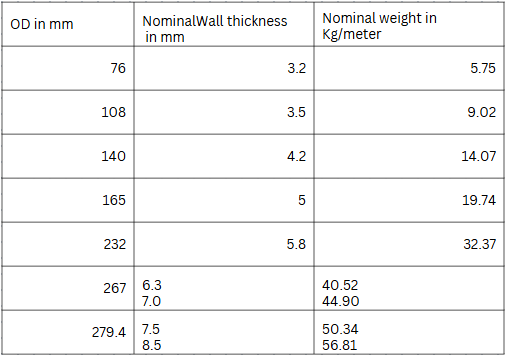

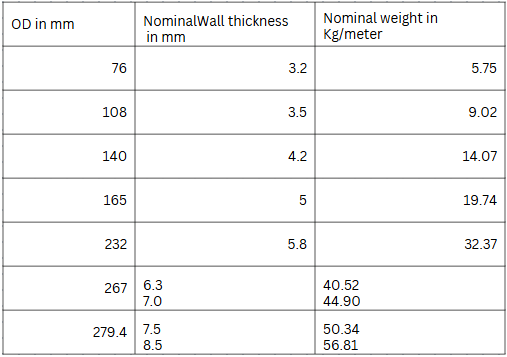

High Pressure Cylinder Pipes & Accumulator Pipes

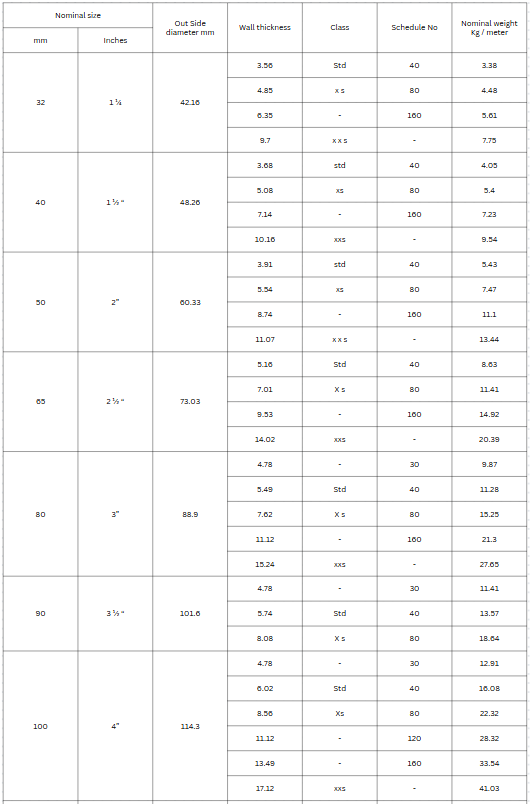

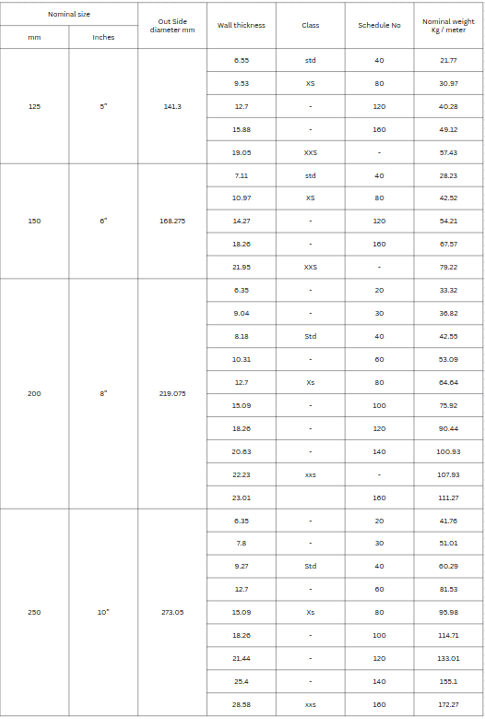

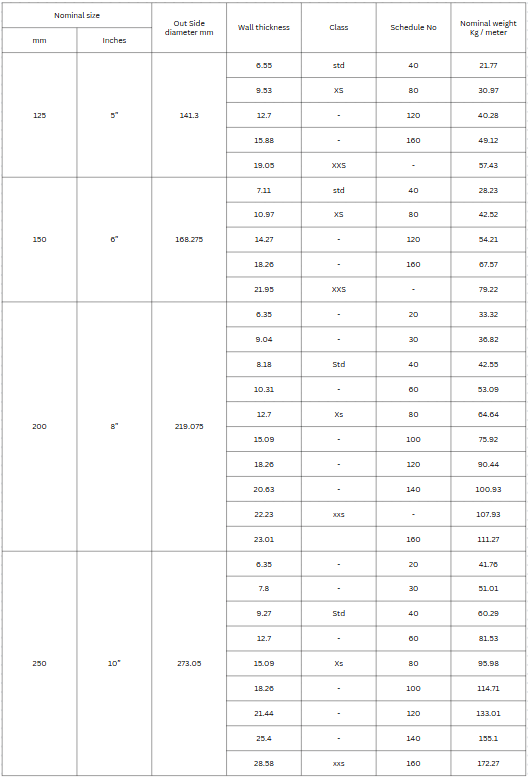

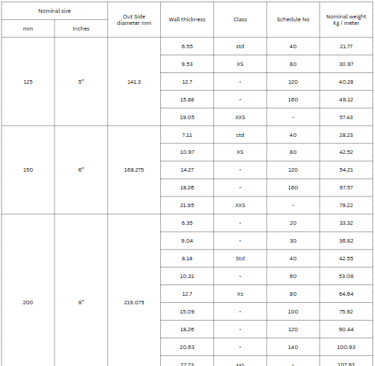

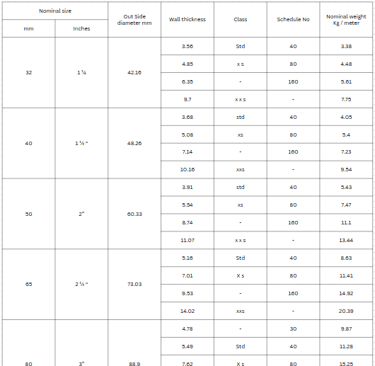

SCHEDULED PIPES AS PER ASTM STANDARDS IN HOT ROLLED CONDITION

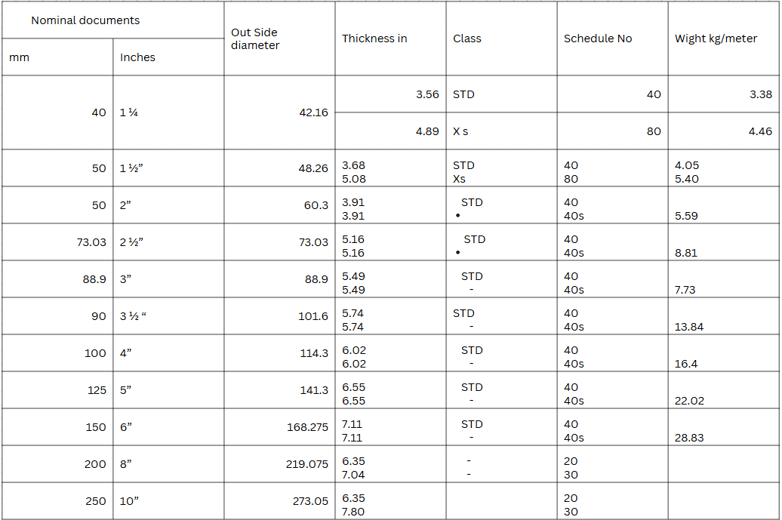

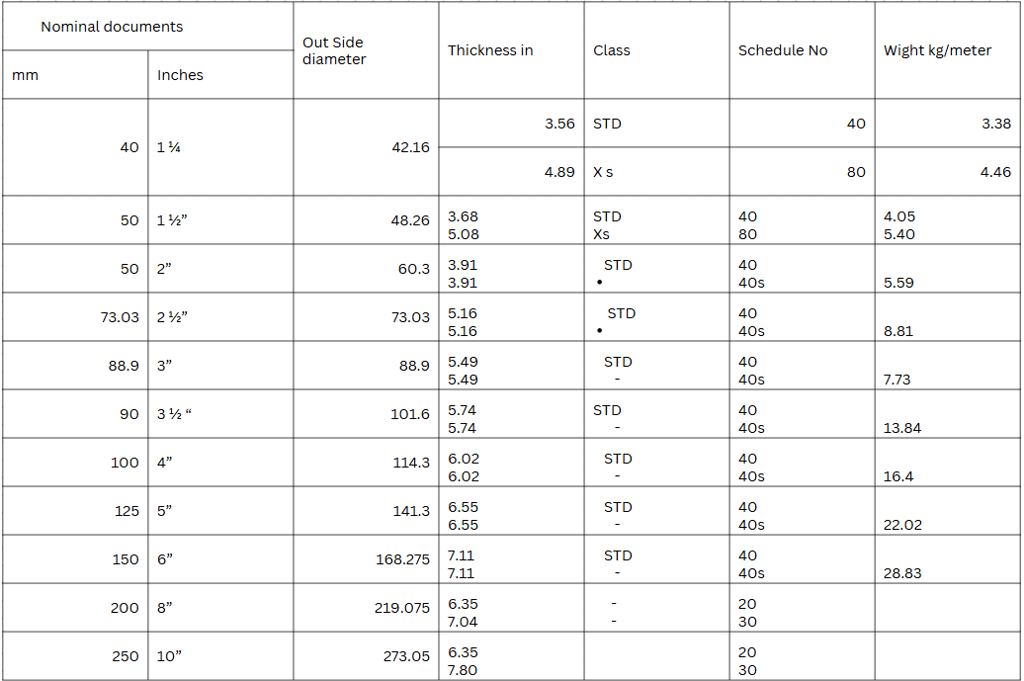

API GRADE PIPES
